Titan 7" LED Round Headlight Insert Kit - LV0220KIT
Titan 7" LED Round Headlight Insert Kit - LV0220KIT
Genuine Osram LED chip. 1 x 10 Watt High - 1 x 15 Watt Low.
9 - 36V DC Input.
High and Low beam function.
Robust Polycarbonate Lens.

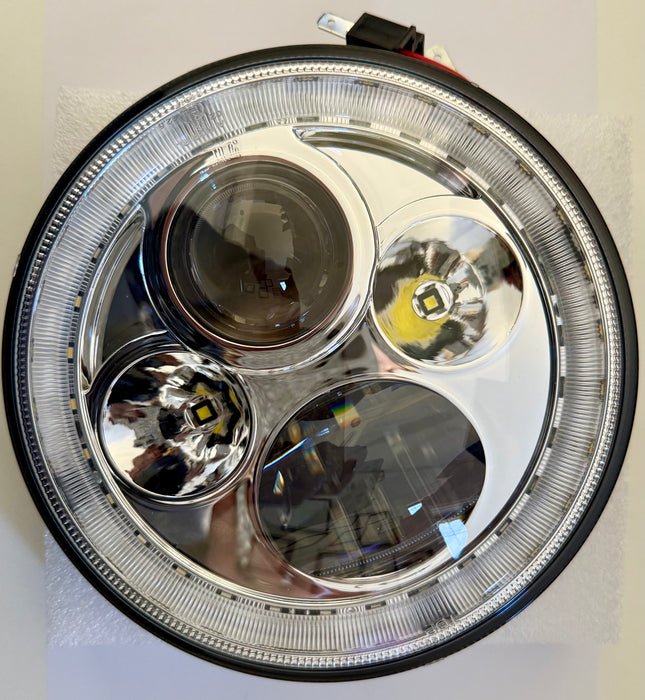

Projector optics for enhanced beam focus.

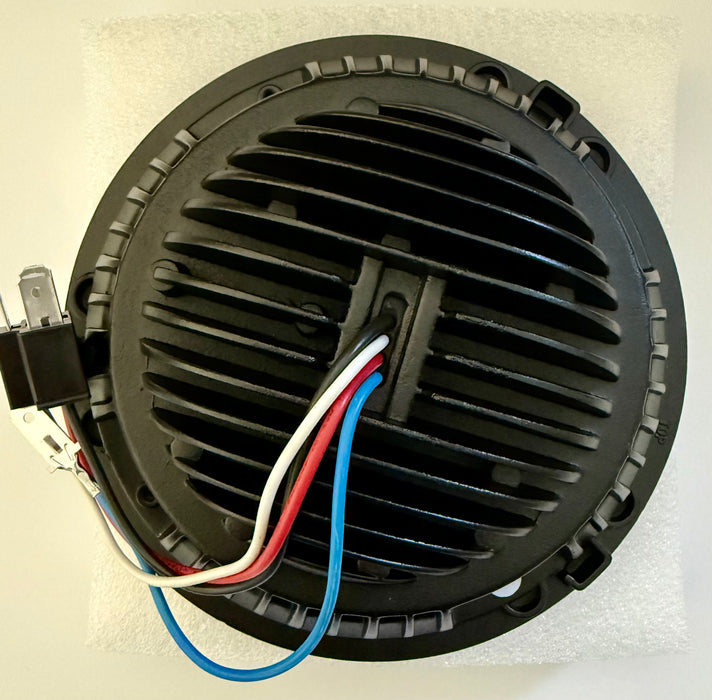

Simple Plug-N-Play installation with H4 connector. Dual wire for Park Light.
Corrosion resistant Powder Coat finish.
Die Cast Aluminium Alloy (ADC12) housing for heat dissipation.
Reverse Polarity Protected.
Inbuilt protection against radio interference ( RFI/EMC ).
Thermal Regulated.
UV Shielded.
Shock Proof.
IP67.
50,000 hour LED life span.
Dimensions: 177.0mm x 99.0mm ( 7" x 3⅜" ).
Lumens: 2000 Low / 1400 High. 150 Park Light.
Current Draw: 2.66A Low / 1.59 High. 1.5W Park Light.
Wattage: 30W Low / 20W High. 1.5W Park Light.
Operating Temperature: -30° to +60°C
